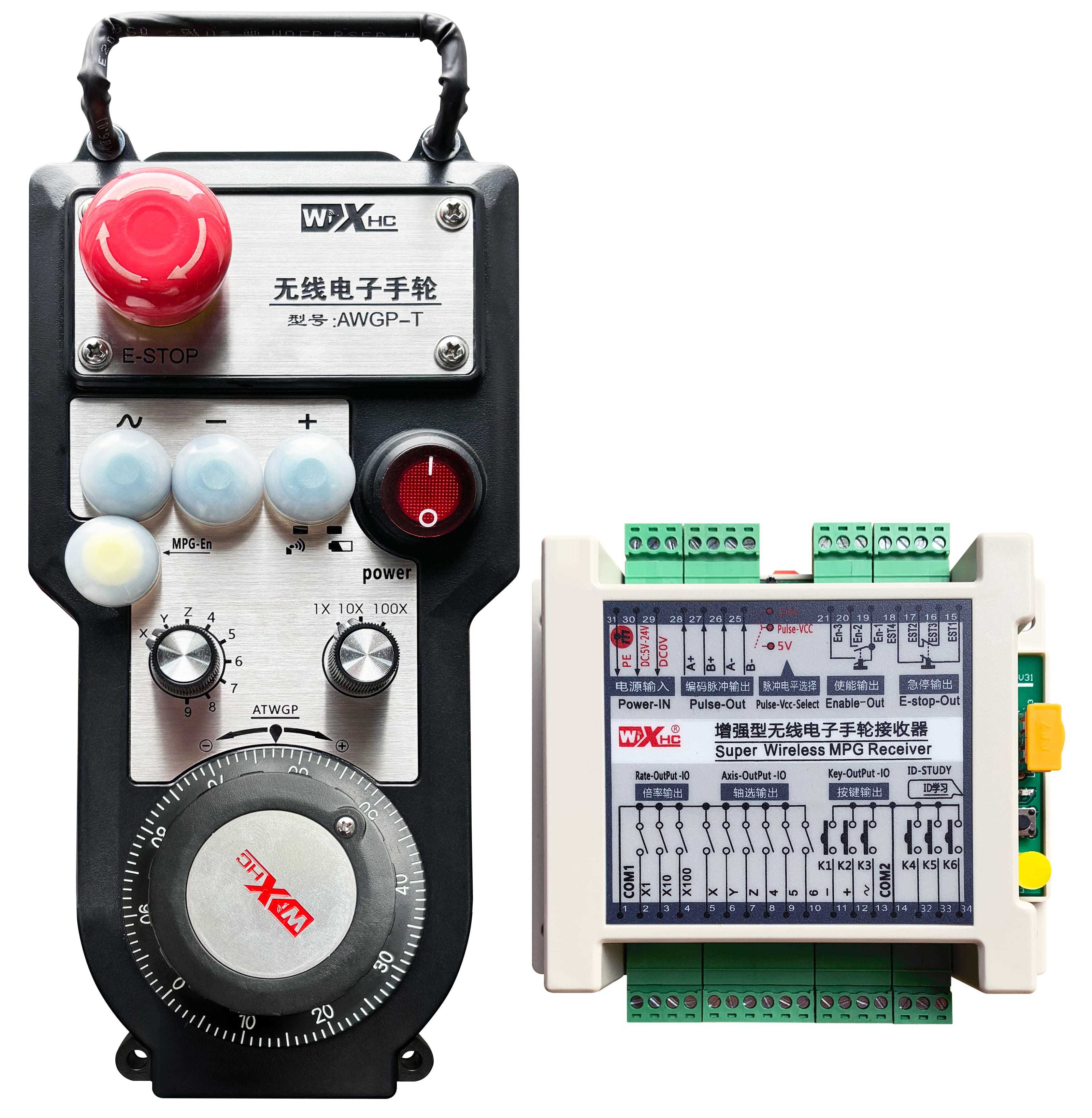

9axis XHC Handheld unit CNC Machining Tool ATWGP wireless cnc remote control pendant pulse generator mpg handwheel for CNC machining center and heavy gantry machines VMC&LMC

Wireless electronic handwheels can perfectly replace all functions of traditional wired handwheels, support all CNC system brands with handwheel interfaces, and have been widely used in CNC machining centers, CNC vertical lathes, CNC milling machines, large gantry machine tools, CNC cutting machines, CNC laser cutting machines and other equipment.

Wireless electronic handwheel products include enhanced wireless electronic handwheels, real-time display wireless electronic handwheels, professional wireless electronic handwheels, and basic wireless electronic handwheels. So far, more than 40 products in this series have been independently developed.

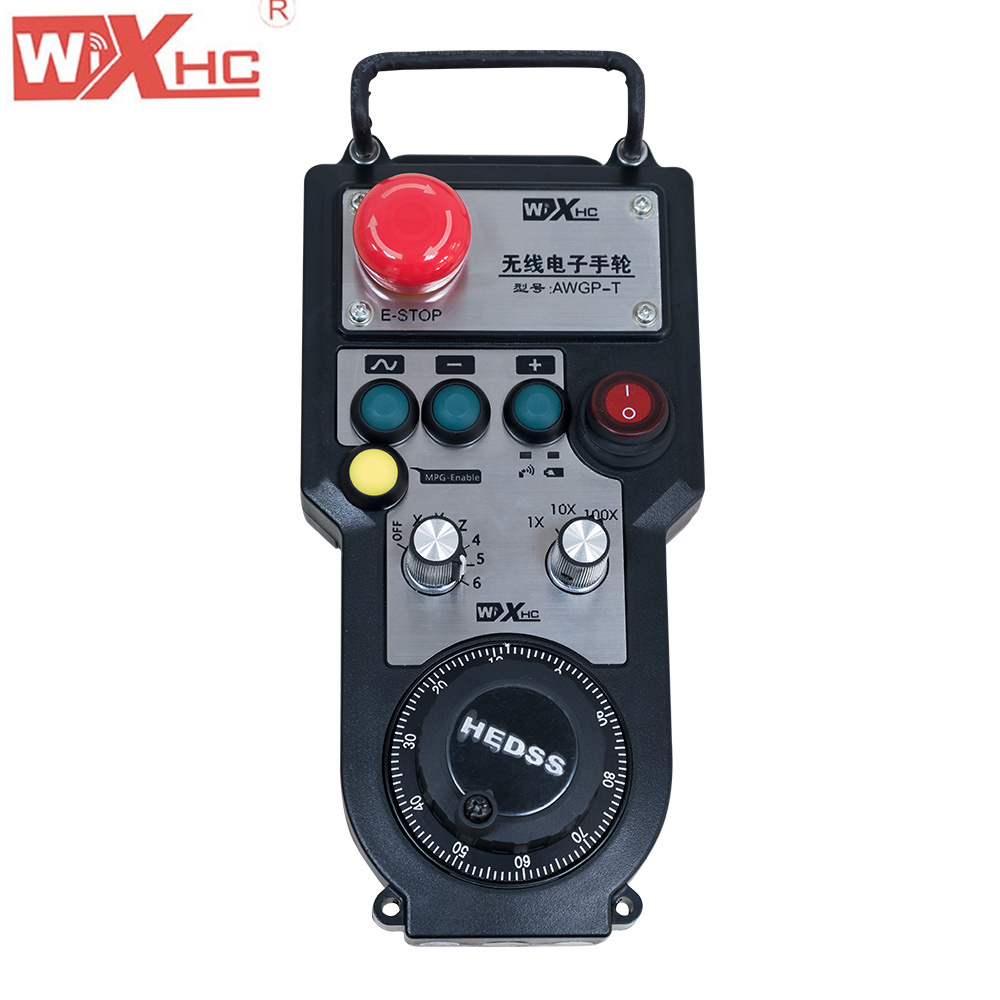

The wireless electronic Handhweel replaces the traditional wired electronic handwheel of CNC machine tools, solves the shortcomings of wired electronic handwheels such as bulky and inconvenient connection cables and limited operating distance. It adopts industrial-grade
wireless communication technology and ergonomic design, and has a remote wireless remote control function of 40 meters. It can manually guide the machine tool, accurately position and move, and perform emergency stop operations, etc.

Pulse signal: 5V differential pulse signal, 5-24V non-differential pulse signal, 24V PLC drain/source signal;

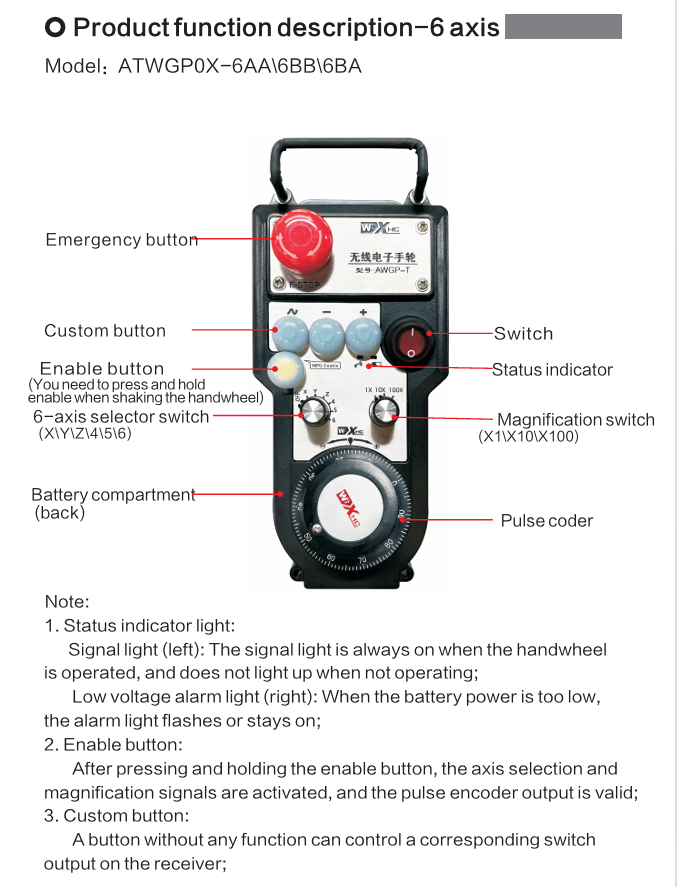

Axis selection switch signal: up to 13 axes, 0-24V switch signal output;
Ratio switch signal: supports up to 4 levels (1X, 10X, 100X, 1000X), 0-24V switch signal output;
Button switch signal: supports up to 6 buttons, 0-24V switch signal;
Supported CNC systems: Support all CNC systems with wired handwheel interface, PLC systems, etc
