XHC ZWGP CNC wireless electronic handwheel for gantry milling machine processing center Siemens system cnc controller pulse generator

One of the most significant advantages of the CNC Handheld Remote Control is its portability. It allows operators to control CNC machines from a distance, providing them with the freedom to move around the workshop or production area. This is especially useful in large-scale manufacturing facilities where the CNC machines are spread out over a wide area. The operator can carry the handheld remote control and easily access different machines without having to be physically present at each control panel. The ergonomic design of the CNC Handheld Remote Control is another key feature. It is crafted to fit comfortably in the hand, enabling operators to use it for extended periods without experiencing fatigue. The buttons and controls on the remote are strategically placed for easy access, allowing for quick and efficient operation. Precision is at the core of the CNC Handheld Remote Control’s functionality. It provides accurate control over the CNC machine’s movements, ensuring that every cut, drill, or shaping operation is carried out with the highest level of accuracy. This is achieved through advanced communication technology that enables seamless transmission of commands from the remote control to the CNC machine. The remote control can precisely adjust parameters such as spindle speed, tool position, and feed rate, which are crucial for achieving high-quality machining results.

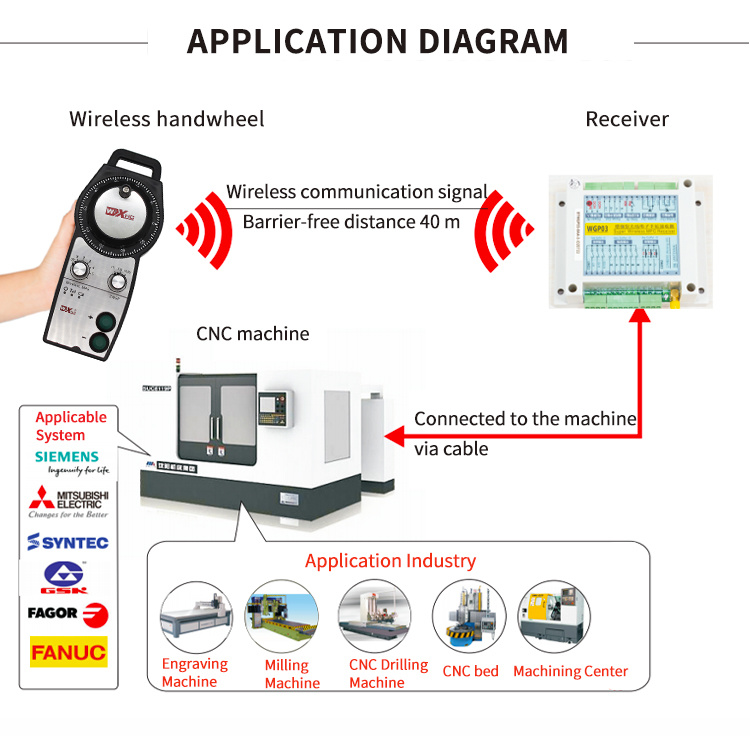

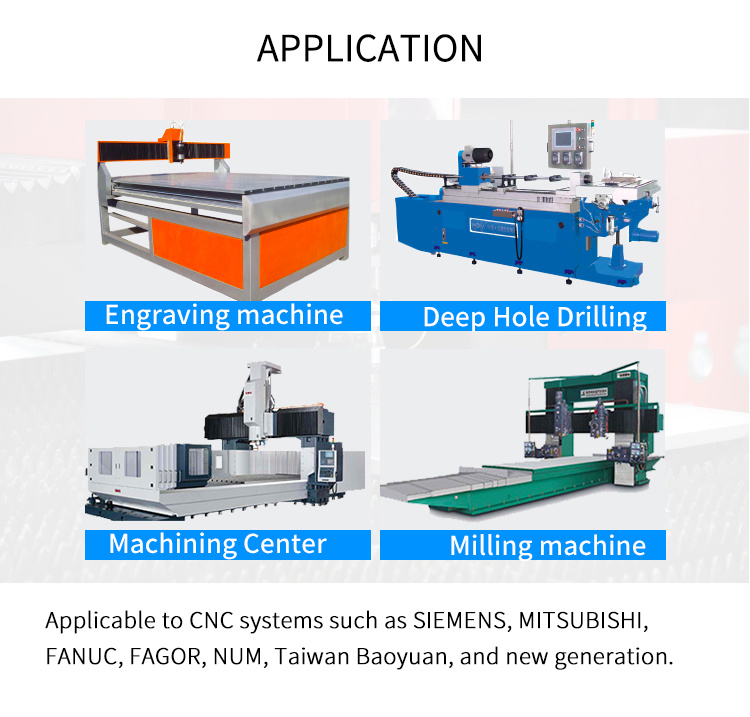

ZWGP basic wireless cnc remote control pendant use for various of cnc systems and cnc machines ,such as milling machine ,grinding machine ,machining center,laser cutting etc



Support System
Suitable for Siemens, Mitsubishi, Fanuc, Fagor, NUM, LNC,Syntec, etc

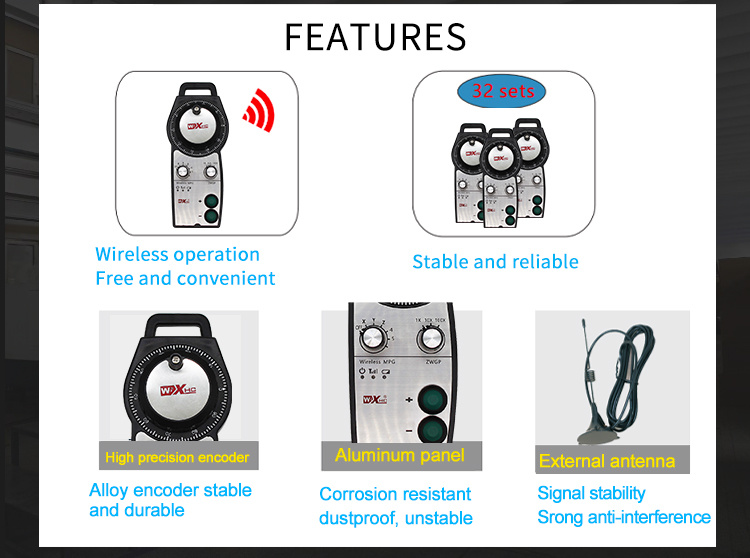

 Product Features

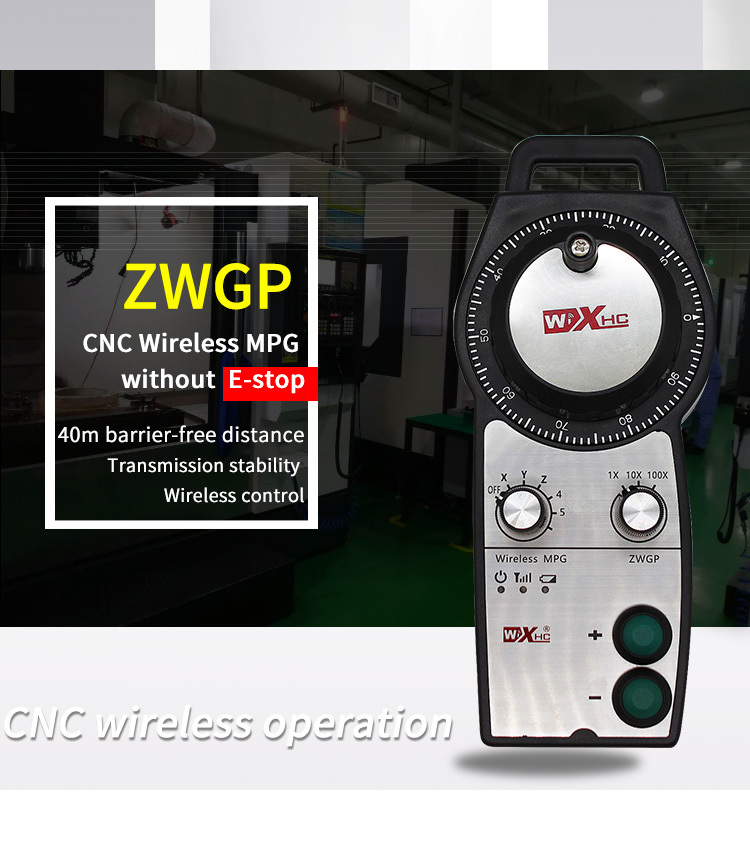

1.Using 433MHZwireless communication frequencyband, the wirelessdistance is 40 meters;
2.Adopt automatic frequency hopping function, can using 32 sets at the sametime, without affecting each other;

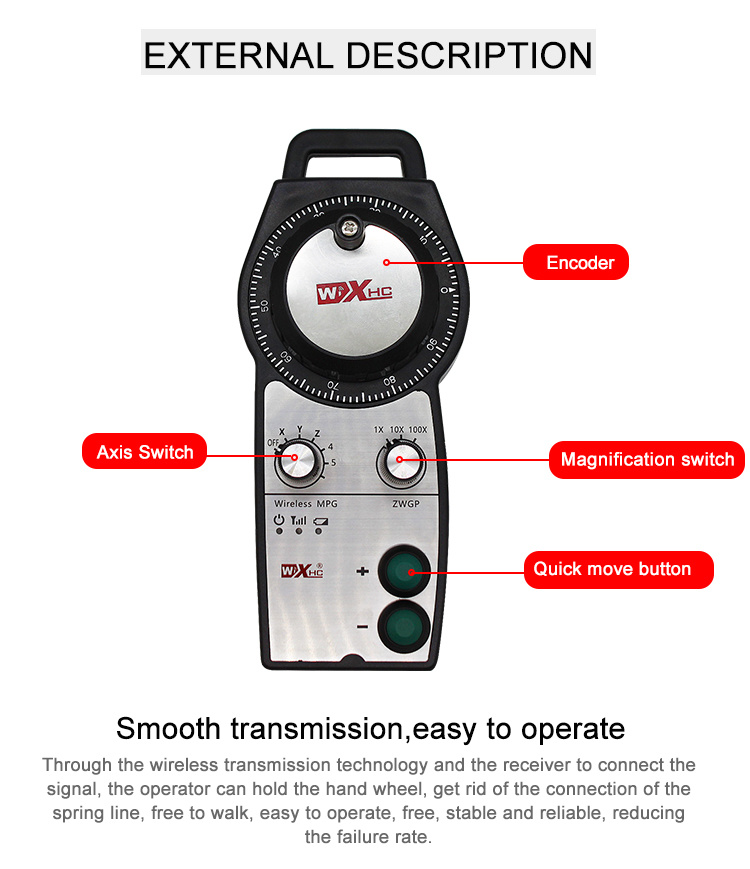

3.Support emergencystop button function, and expand button switch output;4.Support 6-speed shaft selection,3-speed magnification selection;
5.Axis selection and override signals support point-to-point, binary code, graycode and other signal types;
6. Support 5V differential pulse signal, non-differential pulse signal, 24V pulsesignal and other pulse signal types;
7. Low power consumption design, 2 AA batteries can be used for more than1 month.
